JD Pulling Tool Wireline Pulling Tool
I.Introduction
JD pulling tool is a fishing tool that can be used to launch and salvage tools or instruments with external salvage necks (such as prong, plugs, pressure gauges, etc.). It can knock down and release your hand. It can be divided into JDC, JDS and JDL according to different grip distances.
II.General Technical Parameters
| Size | Actual OD | FN | Bottom Connection | To Engage Size |
| 1.25＂ | 1.291＂ | 1.187＂ | 15/16UN | 0.875＂ |
| 1.5＂ | 1.422＂ | 1.187＂ | 15/16UN | 1.187＂ |
| 2＂ | 1.86＂ | 1.375＂ | 15/16UN | 1.375＂ |
| 2.5＂ | 2.25＂ | 1.375＂ | 15/16UN | 1.75＂ |
| 3＂ | 2.796＂ | 1.75＂ | 15/16UN | 2.313＂ |
| 4＂ | 3.75＂ | 2.313＂ | 1-1/16UN | 3.125＂ |
Tools Can Be Manufactured To Any Size Required.
III.Structural features
The upper end of the upper joint is provided with a standard outer fishing neck for connecting to the lower part of the basic tool string; the lower end is provided with an internal thread and is connected to the outer cylinder to form the bearing body of the fishing tool.
The outer cylinder and the fishing claw are the key components of the fishing tool. The fishing claw is in the retracted position under the action of the auxiliary spring. When the salvaged tool enters the outer cylinder, the fishing claw is moved upward. The fishing claws open the fishing neck to grasp the tool.
The outer cylinder and the fishing claw are equipped with sliders; the mandrel is fixed on the outer cylinder with a shear pin and is equipped with a main spring and a pressure cap; when the shear pin is cut off, because the main spring force is far greater than the auxiliary spring force, the mandrel moves upward, Pull the slider to open the claws.
Welcome to contact us at any time.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
|
|

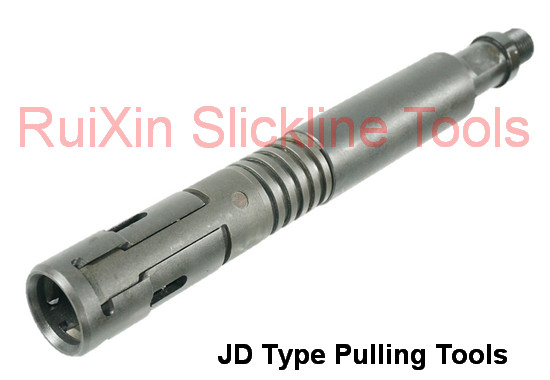

JD Pulling Tool Wireline Pulling Tool Images
|
